Webhooks

Webhooks allow Admiral to send real-time JSON payloads to your endpoints when specific events occur.

What Are Webhooks?

Instead of polling the Admiral API for changes, webhooks push notifications to your application immediately when events happen.

Benefits:

• Real-time notifications
• Reduced API calls
• Event-driven architecture
• Integration with external systems

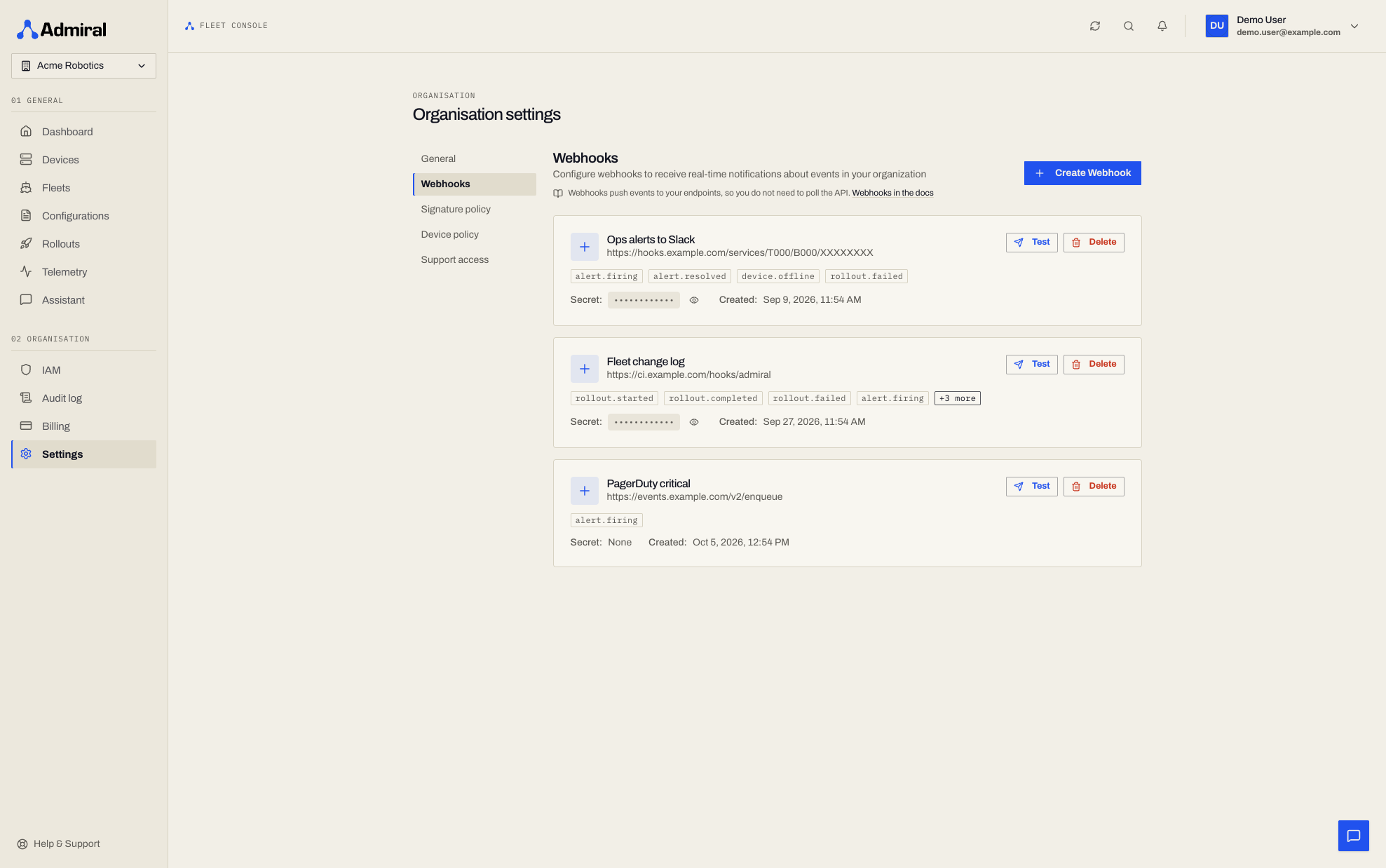

Creating a Webhook

1. Go to Settings > Webhooks
2. Click New Webhook
3. Configure the webhook settings
4. Click Create

Webhook Configuration

Endpoint URL

The HTTPS URL where Admiral will send event payloads:

https://your-app.example.com/webhooks/admiral

Requirements:

• Must use HTTPS (HTTP not supported for security)
• Must return 2xx status code within 10 seconds
• Must be publicly accessible (or use a webhook relay service)

Events

Select which events trigger the webhook:

Fleet Events:

• fleet.node.added - A device was added to a fleet
• fleet.node.removed - A device was removed from a fleet
• fleet.auto_induction - A device automatically joined via provisioning profile

Node (Device) Events:

• node.online - Device connected to control plane
• node.offline - Device disconnected (sent when no heartbeat has been received for 150 seconds)
• node.started - Admiral agent started
• node.shutdown - Device is shutting down
• node.restarted - Device rebooted

Workload Events:

• workload.started - Container workload started
• workload.stopped - Container workload stopped
• workload.restarted - Container workload restarted
• workload.crashed - Container workload exited unexpectedly

Alert Events:

• alert.firing - An alert started firing
• alert.resolved - A firing alert resolved

Platform alerts are always delivered; alerts from your own rules are delivered when the rule has Send to webhooks turned on. See Alerts & Alert Rules.

Custom Headers

Add custom HTTP headers to webhook requests.

Common use cases:

Authentication:

Key: Authorization
Value: Bearer your-secret-token

API Keys:

Key: X-API-Key
Value: your-api-key

Custom Routing:

Key: X-Webhook-Source
Value: admiral-production

Secret

When you create a webhook, Admiral automatically generates a unique Signing Secret. This secret is used to sign payloads so you can verify they originated from Admiral.

Webhook Headers

Admiral sends the following headers with every request:

• User-Agent: Admiral-Webhook-Service/1.0
• Content-Type: application/json
• X-Admiral-Event: The event type (e.g., node.offline)
• X-Admiral-Delivery: A unique UUID for this specific delivery attempt
• X-Admiral-Signature: The HMAC SHA256 signature of the payload (if a secret exists)

Webhook Payloads

Payload Structure

All webhooks follow this structure:

{
  "type": "node.offline",
  "timestamp": "2024-01-15T10:23:45Z",
  "organisation_id": "org_abc123",
  "data": {
    // Event-specific data
  }
}

Example Payloads

Node Offline

{
  "type": "node.offline",
  "timestamp": "2024-01-15T10:23:45Z",
  "organisation_id": "org_abc123",
  "data": {
    "device_id": "dev_xyz789",
    "device_name": "NYC-Store-Display-01",
    "fleet_id": "fleet_456",
    "fleet_name": "Retail-NYC",
    "last_seen": "2024-01-15T10:20:12Z"
  }
}

Workload Crashed

{
  "type": "workload.crashed",
  "timestamp": "2024-01-15T11:45:30Z",
  "organisation_id": "org_abc123",
  "data": {
    "device_id": "dev_xyz789",
    "container_id": "cont_999",
    "image": "my-app:latest",
    "exit_code": 137,
    "reason": "OOMKilled"
  }
}

Fleet Node Added

{
  "type": "fleet.node.added",
  "timestamp": "2024-01-15T09:15:22Z",
  "organisation_id": "org_abc123",
  "data": {
    "device_id": "dev_new001",
    "device_name": "LA-Warehouse-Scanner-05",
    "fleet_id": "fleet_789",
    "fleet_name": "Warehouse-LA"
  }
}

Verifying Webhooks

Signature Verification

Admiral signs the payload body using HMAC SHA256 with your webhook's secret. The signature is sent in the X-Admiral-Signature header.

Format: sha256=<hex_signature>

Here is a Python example to verify the signature:

import hmac
import hashlib

def verify_webhook(payload_bytes, signature_header, secret):
    # Remove "sha256=" prefix
    if signature_header.startswith("sha256="):
        signature = signature_header[7:]
    else:
        return False

    # Calculate expected signature
    expected_signature = hmac.new(
        secret.encode('utf-8'),
        payload_bytes,
        hashlib.sha256
    ).hexdigest()

    # Constant time comparison to prevent timing attacks
    return hmac.compare_digest(expected_signature, signature)

# In your webhook handler
payload = request.body # Raw bytes
signature = request.headers.get('X-Admiral-Signature')
secret = 'your-webhook-secret'

if verify_webhook(payload, signature, secret):
    # Process webhook
    process_event(payload)
else:
    # Reject invalid webhook
    return 401

Integration Examples

Slack Notifications

import requests

def handle_node_offline(webhook_data):
    data = webhook_data['data']
    device_name = data.get('device_name', 'Unknown Device')
    fleet_name = data.get('fleet_name', 'Unknown Fleet')

    slack_message = {
        "text": f"🔴 Device Offline Alert",
        "blocks": [
            {
                "type": "section",
                "text": {
                    "type": "mrkdwn",
                    "text": f"*Device:* {device_name}\n*Fleet:* {fleet_name}"
                }
            }
        ]
    }

    requests.post(
        "https://hooks.slack.com/services/YOUR/WEBHOOK/URL",
        json=slack_message
    )

Database Logging

import json

def log_webhook_to_database(webhook_data):
    # webhook_data matches the SystemEvent structure
    db.execute("""
        INSERT INTO admiral_events (event_type, timestamp, organisation_id, data)
        VALUES (?, ?, ?, ?)
    """, (
        webhook_data['type'],
        webhook_data['timestamp'],
        webhook_data['organisation_id'],
        json.dumps(webhook_data['data'])
    ))

Webhook Management

Disabling Webhooks

You can temporarily disable a webhook without deleting it. Disabled webhooks will not receive any events until re-enabled.

Alert Events

alert.firing and alert.resolved share one payload shape:

{
  "type": "alert.firing",
  "timestamp": "2026-10-04T10:23:45Z",
  "organisation_id": "org_abc123",
  "data": {
    "alert_id": "6f1c...",
    "alertname": "Enclosure overheating",
    "state": "firing",
    "severity": "critical",
    "source": "custom",
    "rule_id": "a2b9...",
    "fleet_id": "flt_123",
    "device_id": "dev_xyz789",
    "summary": "Temperature 91 C",
    "description": "",
    "labels": { "site": "sydney" },
    "starts_at": "2026-10-04T10:18:45Z",
    "ends_at": null
  }
}

source is platform for built-in alerts (with rule_id empty) or custom for your rules. On alert.resolved, ends_at is set.
